eRPC - An efficient Relay Partition Checker

A flexible tool that aims to assess partition among relays in the Tor Network.

Features

☐ - Need to work on
☑ - Working on/Partially Complete
✅- Completed

Here are some current/aspiring features of the entire project

☑ Primary Worker

✅ Build circuits and distribute work to secondary worker through the gRPC server
✅ Uniquely identify a secondry worker by it’s IP Addr and store state individually
✅ Handle work loss recovery after a secondary worker is assigned and secondary worker goes out of contact
✅ Expliclty turn off gRPC server and only use internal scanner ,vice versa and turning on both(ability of being/not being distributed)
✅ Support for saving output data to Neo4j Graph Database
✅ Handle influx of new Relays
✅ Support for saving output data to file based database such as Sqlite
✅ Support for choosing Neo4j and Sqlite as option
✅ Control number of parallel circuit creations at a time
✅ Logging
☑ Pause and Resume of the primary worker
☐ Load already performed scans from the database and start working from where things were after application session was turned off and on again
☐ Control the partition checking by including only specific relay or excluding specific relays based on “filter”
☐ Using data from OnionPerf metrics

✅ Secondary Worker

✅ Build circuits on primary worker provided work
✅ Control configuration such as parallel circuit creation attempts by explicit assignment through env variables or through rpc call to primary worker itself.
✅ Handle network failures such as secondary work getting disconnected while working on the work assigned by the primary worker and reconnecting and retries for those failures
✅ Logging

To know the application’s aim, project structure, architecture and how to run this application please go through the Technical documentation

Running primary worker:

Prerequisites:

This application was built and tested in Rust v1.77.0, so we would recommend you to get at least that version. You can install rust toolchains through here.
Some dynamic libraries and packages this application demands and you would need to install are : libssl-dev, libsqlite3-dev, liblzma-dev, protobuf-compiler, pkg-config
IMPORTANT : Set the max limit for open file descriptors to something big if you have high no of parallel ciruit build attempts. Run ulimit -n 99999 if you have low limit of open file descriptors

Configuration:

For configurations please look at configure and run in the WiKi or you can directly look at primary worker config

Running :

Follow the following steps :

Clone the repo using git clone https://gitlab.torproject.org/tpo/network-health/erpc
Enter into the root of the project using cd erpc.
You have the option of using cargo directly to run the application, or produce the primary worker binary first and then run it. We’ll use the cargo option for now.
To Make sure that you have the configuration files for the primary worker please do look at these configuration files or you can simply go to the config directory for the primary worker by using cd config/primary from the root of the repo.
You can tweak the application’s functioning configurations as you want by tweaking the values set in the Config.toml and .env file.
You can tweak the application’s logging configuration by tweaking the values set in log_config.yml.

If you were to add the following in the log_config.yml, then you will be able to log to both, the log file and stdout.


root:
level: debug
appenders:
  - output
  - stdout

You can discard logging to either stdout or log file by simply removing the line - output or - stdout in the log_config.yml file.

To understand the configurations in depth, please visit here.

After you have set the configuration, you can run the primary worker by either running
- cargo run --release --bin primary -- --config config/primary/Config.toml --env config/primary/.env --log-config config/primary/log_config.yml, from the root of the project, which allows you to load the configuration files by specifying the path to them.
- cargo run from the *root of the project, which allows you to load the default configuration files.

eRPC - An efficient Relay Partition Checker

Within the Tor Network, if there is a partition among relays or this inability of relay(s) to communicate with other relay(s), it has a harsh impact on the Tor Network. This application erpc aims to be the tool that scans for possible partitions within the Tor Network, so that the resulting data can be used to monitor those possible partitions and their cause, and can be worked on later.

Goals :

Create a gRPC based distributed scanner that can be used to distribute the partition scanning in balanced way among its workers.
Create a powerful configuration that can tweak the application behavior as the user wants.
Create a gRPC based interface to tweak some application configs during the runtime, so that the application configuration changes during the runtime itself and also provide features to pause and resume scan through the interface itself.
Generate the data in the given output format or through the interface as the user wants.
Ability to scan partitions among every relay or desired relays through two hop circuit creation test.

Issues faced by other similar projects:

There are around ~6800 relays out there and which means around ~46 million relay combinations(both directions considered). It’s a lot of 2 hop circuits to build if we are to test them all. In the conversation of “Measure connectivity patterns between relays“ there’s a talk about testing all possible 2 hop circuits, per day 10% of the circuits seem to have been created and in 3+ weeks, connection between two relays were tested 6 times among 6730 relays. So, creating 2 hop circuits millions of times is a very sensitive thing, considering the load on the network it needs to be done at a specific pace, in which each relay reacts to creating circuits differently depending upon its bandwidth, consensus weight.
What if a relay is down, rather than blocked? How are different outputs segregated and visualised?
All the application and network level issues mentioned at Onion Graph Known issues

Application Design

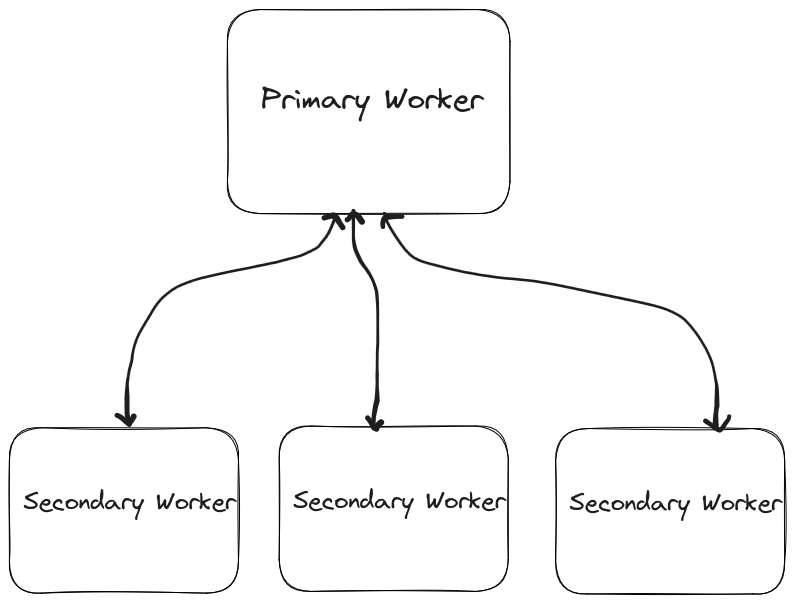

The application has a distributed worker architecture where it uses gRPC as its communication protocol. Here from the diagram below, we can see that there is this notion of primary worker that controls the secondary workers by distributing the work among the dynamically connected secondary workers. The work here is nothing but testing of circuits among specified relays. Batches of work represent the small chunks of work provided, which the secondary worker finishes and returns its result back to primary worker. The configuration within the secondary worker is controlled by the primary worker unless the configuration is explicitly mentioned in the secondary worker’s configuration file.

Currently we have 2 libraries, erpc-scanner and other is erpc-metrics(yet to work on) and two binaries within erpc-worker, they are primary worker and secondary worker.

Let’s talk about the library erpc-scanner,

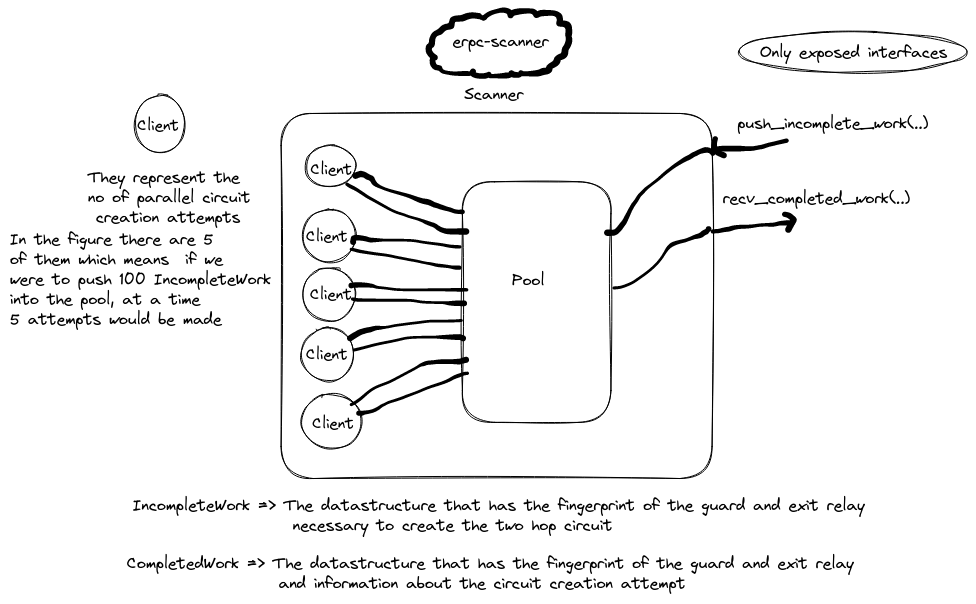

This library consists of all the codes necessary to turn a desired two hop circuit combination into a circuit creation attempt. There’s this core type called Scanner, which abstracts away all the inner details and only exposes two methods to deal with, push_incomplete_work(..) and recv_completed_work(..). In the figure below, there are these Client that act as a type indirection for CircMgr of arti-client and they are responsible for using the CircuitBuilder to create circuits. The IncompleteWork is the information about the 2 hop circuit to be created i.e the guard and exit relay, and CompletedWork is the result of circuit creation attempt. {:width=”600” height=”500”}

{:width=”600” height=”500”}

Scanning Strategy

Let’s imagine we have 1000 relays. Currently in this application, it creates these type called Node for each of those 1000 Relay, each Node contains fields called to_be_used_as_exit and to_be_ignored and it contains pointer to the Node that it should use as an exit relay and who it should not(one that are in the same subnet, same family and itself) respectively. Using this information a Node attempts to use the other Node as an exit relay, in this way all 1000 Node attempt to keep every other one as the exit relay, but at a time a Node gets to be in only one circuit either as a guard or exit, but not both i.e it’s not allowed to be involved in multiple circuits at a time. We’re only creating one circuit at any instant in time. The to_be_used_as_exit field is filtered based on the highest to lowest consensus weight, this way we are building the most probable circuits first.

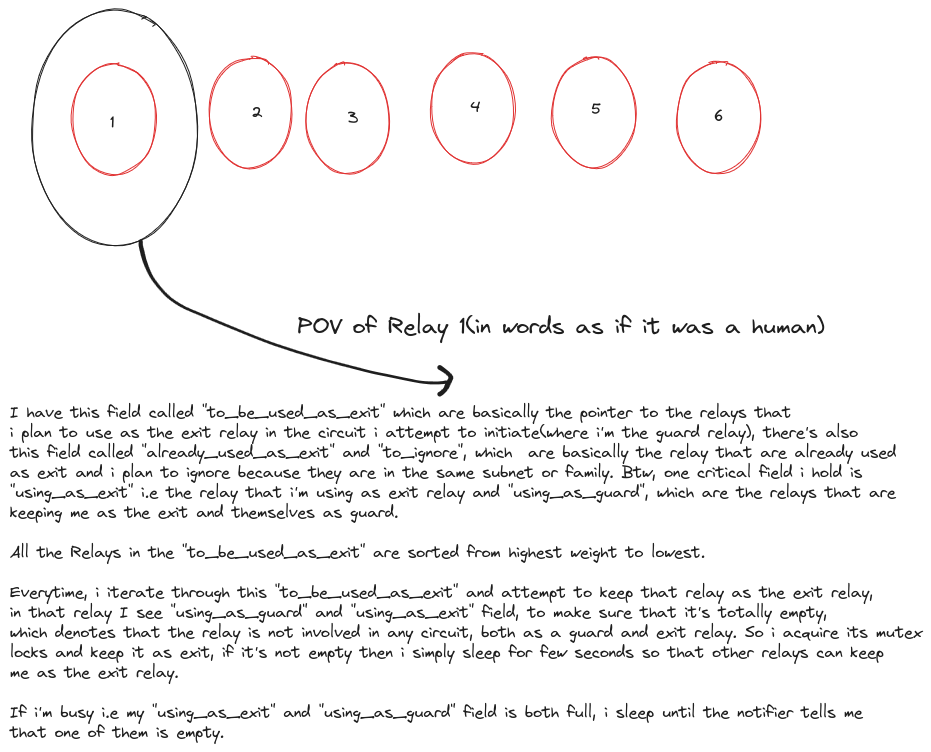

Here’s the POV that every Relay goes through:

Handling Influx of new Relays and filtering Relays to/not make circuit with

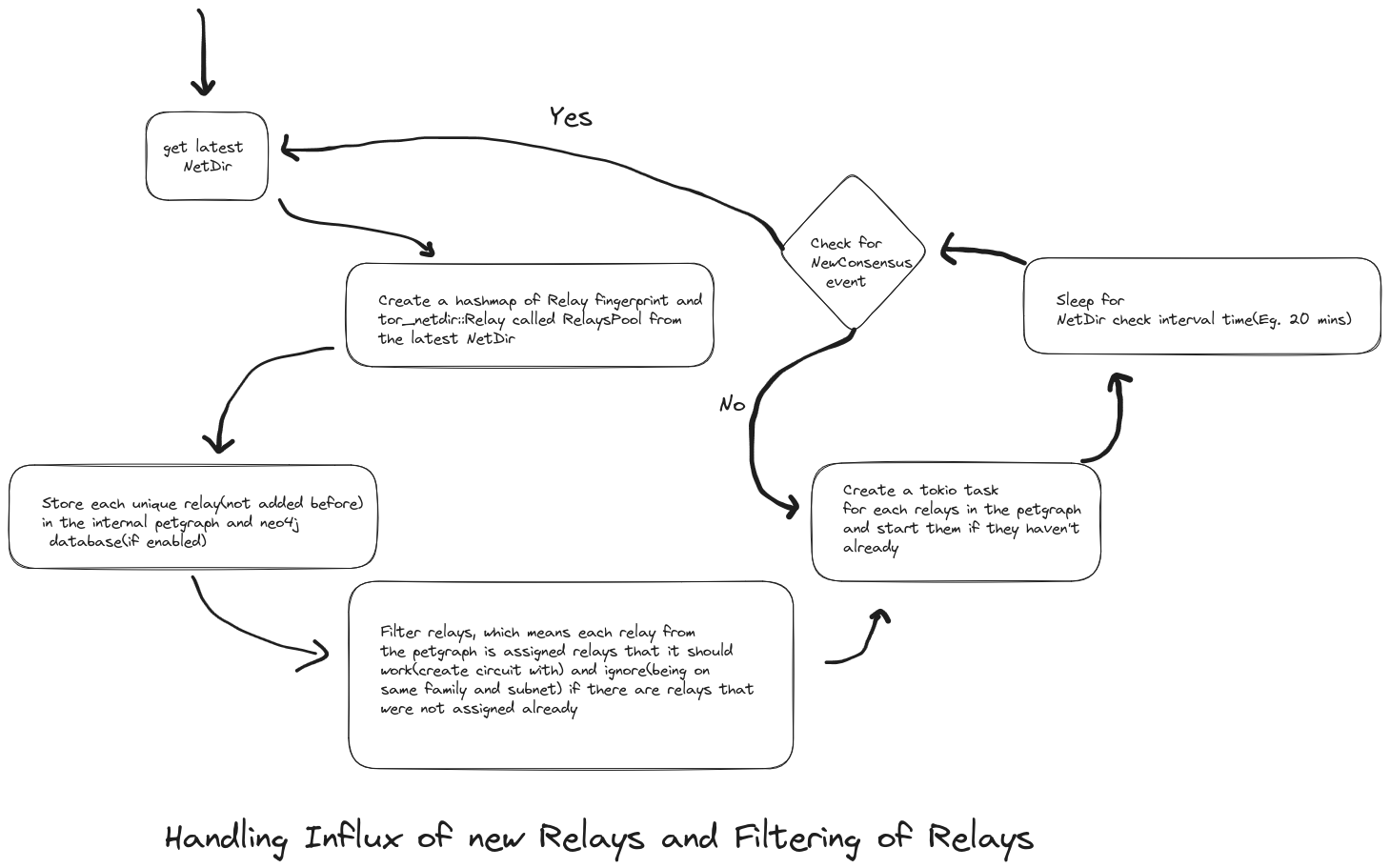

Currently we have this NetDirProvider, which abstracts the DirMgr from arti, this DirMgr has a stream that gives out a type called DirEvent, which represents that the NetDir has been changed, so in NetDirProvider, we listen for this event and then broadcast a fresh NetDir in the broadcast channel that the NetDirProvider has and it also gets hold on the latest NetDir here. So, everytime the DirEvent::NewConsensus is received from the stream of events of DirMgr, we update the NetDir.

Within erpc, we have this type called TorNetwork, which is responsible for creating the combinations of two hop circuits. The start method is responsible for starting this TorNetwork, initially it gets the NetDir from the get_current_netdir method. Then we store information about each unique Relay from the NetDir to the petgraph that and the configured graph database. After that, we filter each relay, by filtering it means that each relay is taken and all the relay that are it’s family are in the same subnet ignored to build circuits. This cycle is continued for every new NetDir received through NetDirProvider receive half of the broadcast channel.

Configure and Run :

Important terms:

Let’s understand few notions before we get into running the application. The term IncompleteWork refers to the data structure that simply stores the fingerprint of the first hop(source_relay) and second hop(destination_relay) of the two hop circuit



#![allow(unused_variables)]
fn main() {
pub struct IncompleteWork {
    /// Metadata to identify the source relay
    pub source_relay: String,

    /// Metadata to identify the destination relay
    pub destination_relay: String,
}
}

and this data on IncompleteWork is then used to make circuit creation attempt and the result of this circuit creation attempt is stored in a data structure called CompletedWork, which contains the same informations as IncompleteWork, with few extra information such as how the work two hop circuit attempt went, Successful or Failed.



#![allow(unused_variables)]
fn main() {
#[derive(Debug, Clone)]
pub struct CompletedWork {
    /// Fingerprint to identify the source relay
    pub source_relay: String,

    /// Fingerprint to identify the destination relay
    pub destination_relay: String,

    /// Shows how the work was completed, was it a success or failure
    pub status: CompletedWorkStatus,

    /// The Unix epoch at which the test was performed
    pub timestamp: u64,
}

}



#![allow(unused_variables)]
fn main() {
pub enum CompletedWorkStatus {
    /// The circuit creation attempt successful
    Success,

    /// The circuit creation attempt failed with an error
    Failure(String),
}
}

Now, we’re ready to configure the application.

Configuring Distribution

There are 3 different modes on the basis of distribution, in which you can run this application. Let’s go through each distribution mode.

(i) Running only Primary Worker Scanner

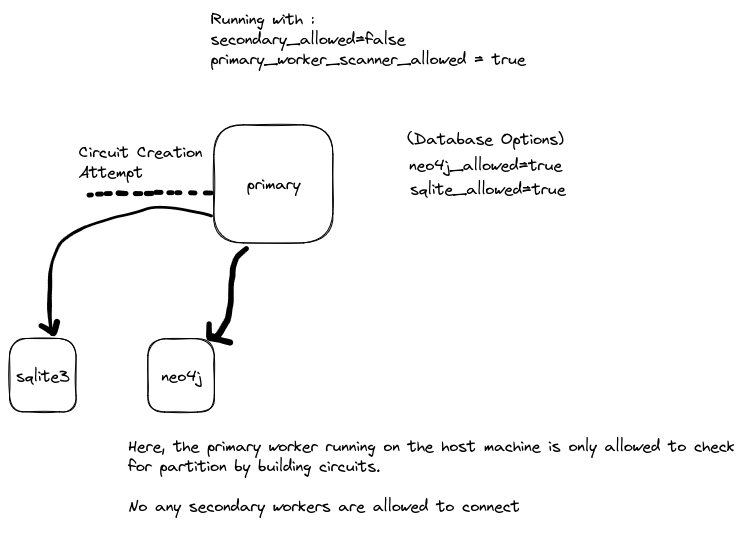

The primary worker running on a host machine will only be allowed to to create circuits and check for partition, it won’t be allowed to run gRPC service for the Secondary Workers, so that the work can’t be distributed. It means everything is isolated within the primary worker. {:width=”600” height=”500”}

To set this mode, you should add the following in the config file


# The gRPC server for Secondary Workers is turned off
secondary_allowed = false

# The Primary Worker is allowed to scan for partitions by creating circuits
primary_worker_scanner_allowed = true

(ii) Running only gRPC Service for Secondary Workers

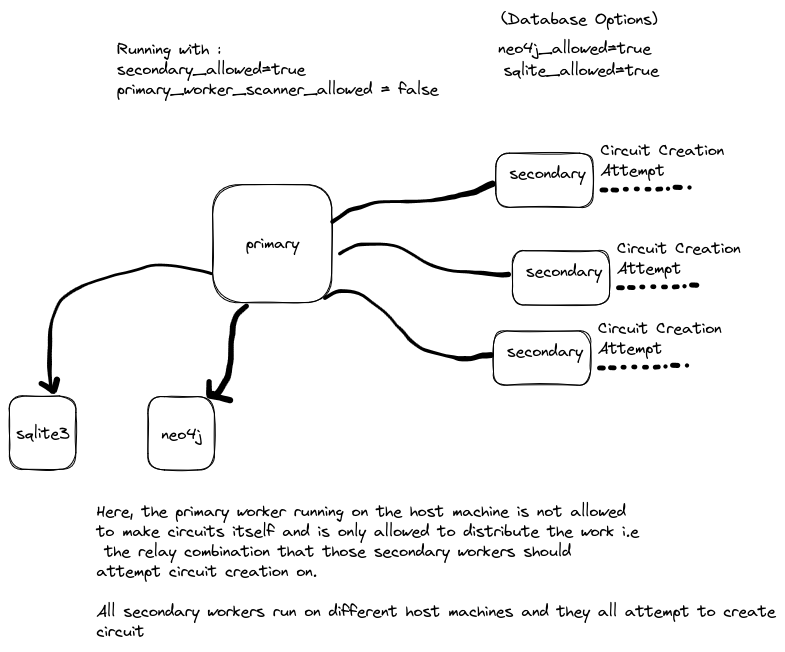

The primary worker running on the host machine is not allowed to create circuits and check for partition on the host machine it’s running on, it only runs the gRPC Service for the secondary workers, where it distributes the ```IncompleteWork`` i.e the relay combinations of which the circuit is to be created, to the secondary workers.

{:width=”600” height=”500”}

To set this mode, you can add the following in the config file


# The gRPC server for secondary workers is turned on
secondary_allowed = true

# The Primary Worker is not allowed to create circuits and check for partitions itself.
primary_worker_scanner_allowed = false

(iii) Running both Primary Worker Scanner and gRPC Service for Secondary Workers

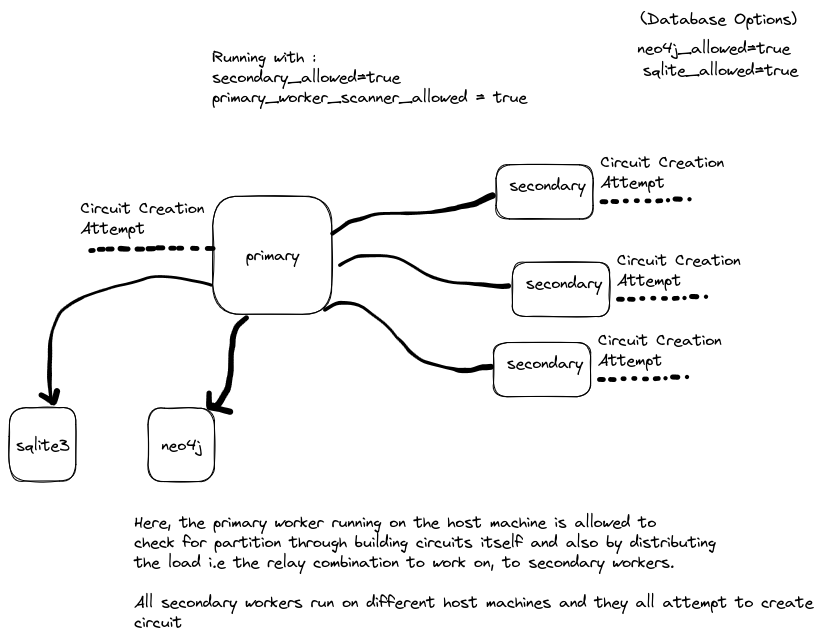

The primary worker running on the host machine is allowed to create circuits and check for partition on the host machine it’s running on and it also runs the gRPC Service for the secondary workers, where it distributes the ```IncompleteWork`` i.e the relay combinations of which the circuit is to be created, to the secondary workers.

{:width=”600” height=”500”}

NOTES :

If you have set secondary_allowed = true, then you must add the following in the .env file of both the primary and secondary worker.

For .env file in primary worker:


# The gRPC interface to run on
SECONDARY_WORKER_GRPC_SERVER_ADDR = "0.0.0.0:10000"

For .env file in secondary worker:


# The URL of the primary worker gRPC server
PRIMARY_WORKER_GRPC_SERVER_URL = "http://<MASTER_WORKER_IP>:10000"

Run only one secondary worker per host machine, because the indexing of each secondary is done through it’s IP address, running multiple secondary workers on the same IP will create issues.

Configuring Database

Also, for the database you have the options to either use sqlite3 or neo4j. You have the option to use both or any one of them by providing configurations in the config file

Example :


# Uses neo4j database to save the data produced
neo4j_allowed = true

# Uses sqlite database to save the data produced
sqlite_allowed = true

You can use sqlite3 if you want to run the application quick without any database setup.

But, if you are seeking for extra visualization of data and features you can spin a neo4j database, you can do it through docker, to do that, install docker through from here and after than you can pull the latest image of neo4j through docker pull neo4j:latest and run neo4j container as mentioned in this documentation i.e.


docker run \
    --name testneo4j \
    -p7474:7474 -p7687:7687 \
    -d \
    -v $HOME/neo4j/data:/data \
    -v $HOME/neo4j/logs:/logs \
    -v $HOME/neo4j/import:/var/lib/neo4j/import \
    -v $HOME/neo4j/plugins:/plugins \
    --env NEO4J_AUTH=neo4j/password \
    neo4j:latest

where neo4j is the username and password is the password, the ports are explained well in in the same documentation properly, after you have a running container of neo4j, you can simply go to the .env file at the configuration of the primary worker and put the neo4j credentials there.

Running Secondary Worker and connecting to Primary Worker:

Clone the repo using git clone https://gitlab.torproject.org/tpo/network-health/erpc
Enter into the root of the project using cd erpc.
You have the option of using cargo directly to run the application, or produce the secondary worker binary first and then run it. We’ll use the cargo option for now.
Make sure that you have the .env for the secondary, you can simply go to the config directory for the secondary worker by using cd config/secondary from the root of the repo and get that .env file.
Inside the .env file, set the address of the gRPC server i.e the one that primary worker has configured
After setting the environment variables, you can simply run the command cargo run --release --bin secondary in the same directory where you had the .env file.

References

Internal API documentation

This document provides links to the API documentation for all components of the erpc project.

primary - Primary worker documentation
secondary - Secondary worker documentation
erpc-scanner - Scanner library documentation
erpc-analysis - Analysis library documentatssion
erpc-metrics - Metrics collection library documentation

eRPC Documentation

eRPC - An efficient Relay Partition Checker

Features

☑ Primary Worker

✅ Secondary Worker

Running primary worker:

Prerequisites:

Configuration:

Running :
